PIKE POLES

Fir straight pikes (800 series poles) with and without guard (2″ or 2-1/2″)

Pike Poles were designed to aid the person in the field using pole line tools. Pike Poles are used to pike or support a pole when setting in the field. The pike is made of special steel made of one piece with upset face which will take the force of the end thrust and distribute it over the entire end of the handle. The ferrule is made of malleable iron. A rivet runs completely through the ferrule, handle and pike to further secure them.

Fir Pike Poles can be furnished with a Point Guard. The guard works easily and fastens securely in either the guarded or open position. When in the un-guarded position the guard is completely out of the way, snugly fitted around the pole. When the guard is in position, it automatically locks in place and provides protection from the pike point. The Guard will fit either the 2″ or 2-1/2″ pike poles.

Ash pike (300 series) and hook (1-5/8″)

The Twisted Pike and Hook end screws into a hard pole adding leverage. It takes considerable effort to pull it straight out, but by turning the pole the same as one would turn out a screw it comes out easily.

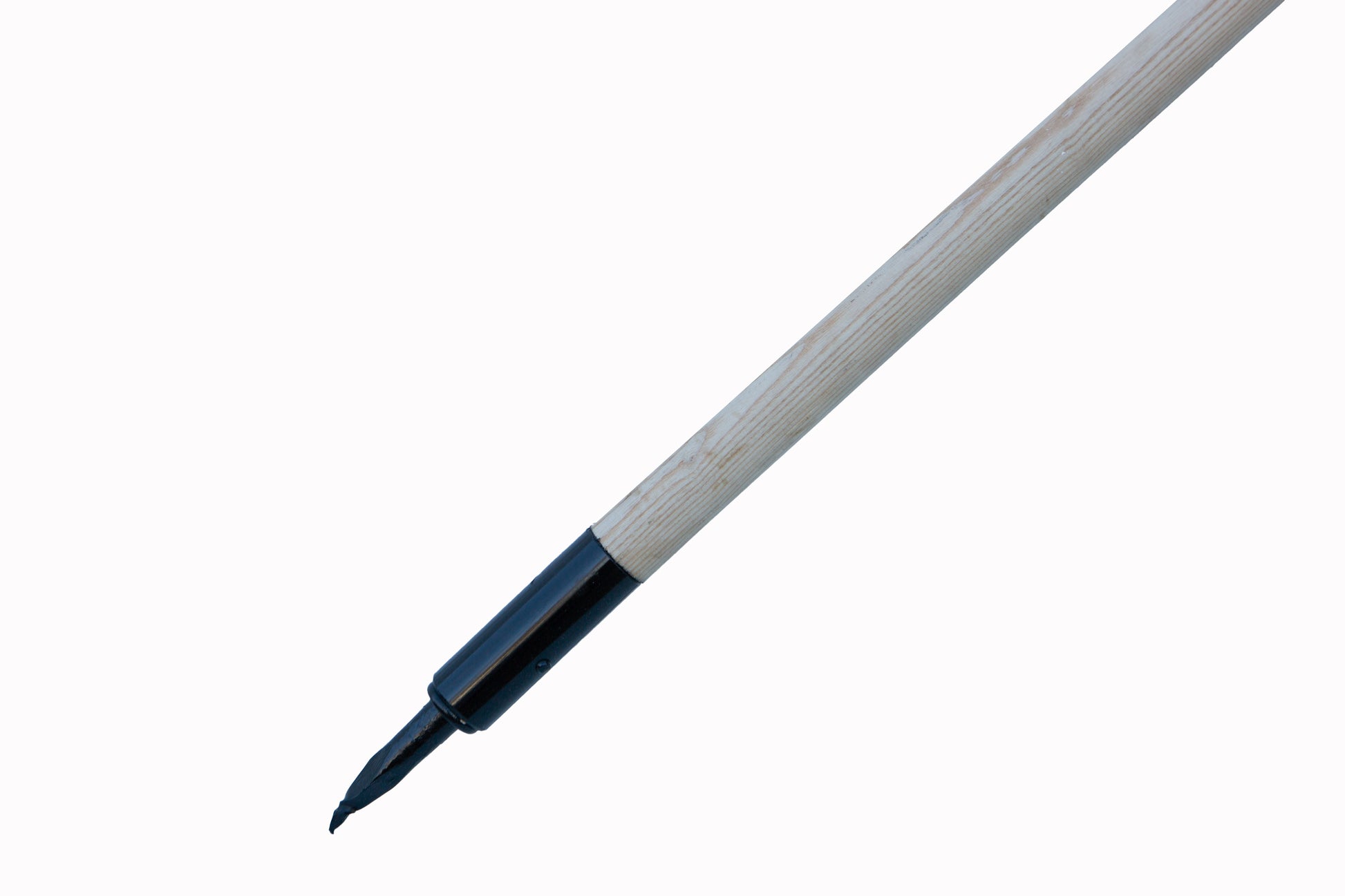

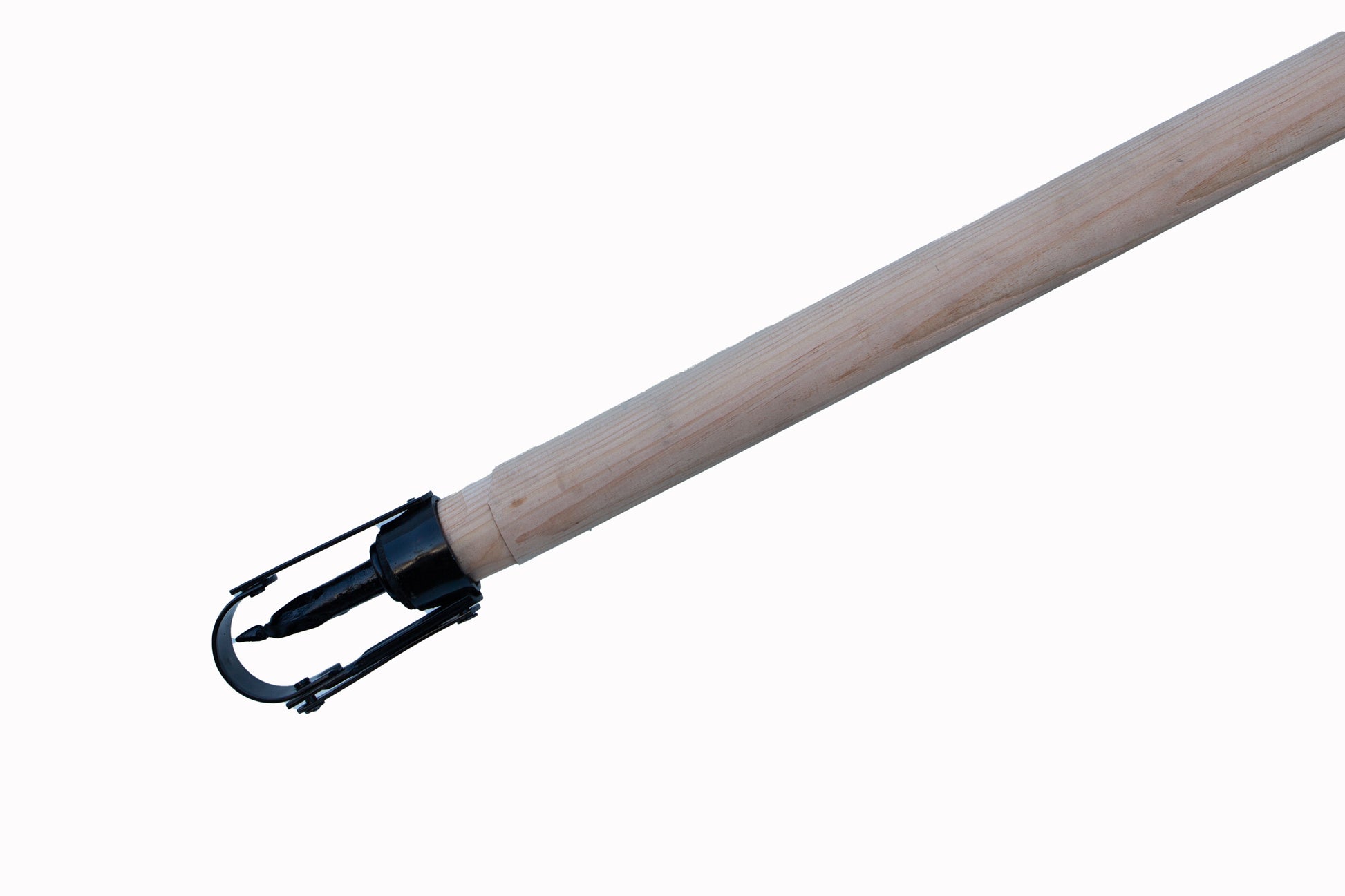

Photo on left: Fir straight pikes (800 series poles) with and without guard (2″ or 2-1/2″)

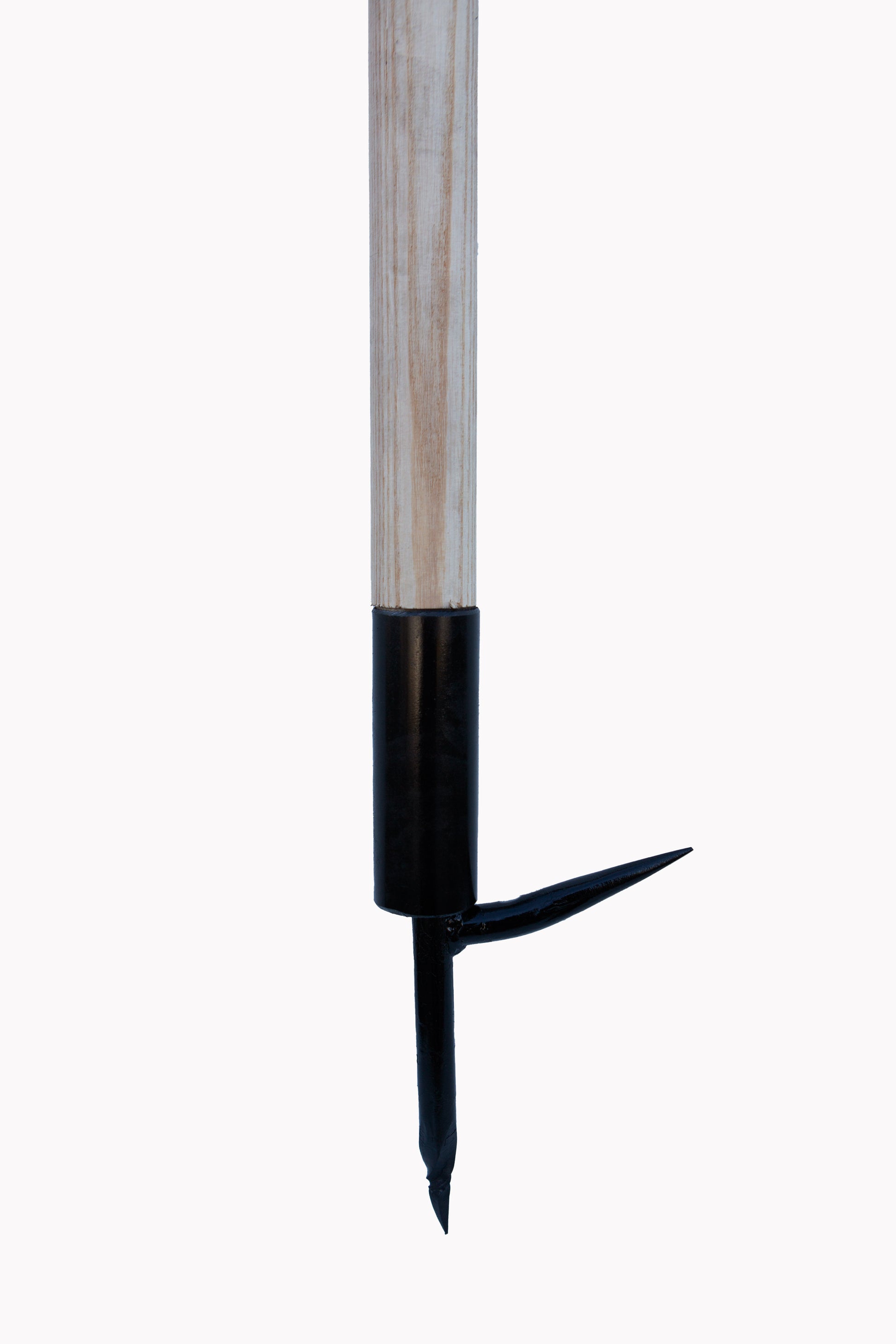

Photo above: Ash pike (300 series) and hook (1-5/8″)

Aluminum Pike Poles (not pictured) are 1 1/2″ OD and come with a pike and hook only.

Ash and Fir Pike Poles are made of wood. Whenever using wood tools to support logs, poles, etc. never stand underneath the load! Wood can break. Be sure to inspect your tools prior to use for any signs of cracking, grain issues, breakage, etc.

TOOL REF # TOOL DESCRIPTION WT Hook/other HANDLE
PIKE POLES – Pike and hooks are not currently available. Pricing will be determined once they become available again. Unfortunately we do not have an accurate lead time. 311 6′ ASH PIKE POLE W/PIKE & HOOK 7 # 530 597
312 8′ ASH PIKE POLE W/PIKE & HOOK 8 # 530 598
313 10′ ASH PIKE POLE W/PIKE & HOOK 9 # 530 599
314 12′ PIKE POLE W/PIKE & HOOK 11 # 530 600
315 14′ ASH PIKE POLE W/PIKE & HOOK 12 # 530 601
316 16′ ASH PIKE POLE W/PIKE & HOOK 13 # 530 602
3819-8 8′ ALUM PIKE POLE W/PIKE & HOOK 5 # 530 3819A-8
3819-10 10′ ALUM PIKE POLE W/PIKE & HOOK 5 # 530 3819A-10
3819-12 12′ ALUM PIKE POLE W/PIKE & HOOK 6 # 530 3819A-12
3819-14 14′ ALUM PIKE POLE W/PIKE & HOOK 7 # 530 3819A-14
3819-16 16′ ALUM PIKE POLE W/PIKE & HOOK 8 # 530 3819A-16
3819-18 18′ ALUM PIKE POLE W/PK & HOOK 9 # 530 3819A-18
3819-20 20′ ALUM PIKE POLE W/PK & HOOK 11#
4624-16 2″ X 16′ FIR 2 SECTION PIKE POLE 12 # 3308
818 2-1/2″ X 12′ FIR PIKE POLE 13 # 3308 982
818F 2-1/2″ X 12′ FIR PIKE POLE W/FINISH 13 # 3308 982
818G 2-1/2″ X 12 FIR PIKE POLE W/GUARD 13 # 3308 982
818FG 2-1/2″ X 12 FIR PIKE POLE W/GUARD 13 #
819 2-1/2″ X 14′ FIR PIKE POLE 14 # 3308 983
819F 2-1/2″ X 14′ FIR PIKE POLE W/FINISH 14 # 3308 983
819G 2-1/2″ X 14′ FIR PIKE POLE W/ GUARD 15#
820 2-1/2″ X 16′ FIR PIKE POLE 15 # 3308 984
820F 2-1/2″ X 16′ FIR PIKE POLE W/FINISH 15 # 3308 984
820G 2-1/2″ X 16′ FIR PIKE POLE 15 # 3308 984
820FG 2-1/2″ X 16′ FIR PIKE POLE W/FINISH AND GUARD 15 #
821 2-1/2″ X 18′ FIR PIKE POLE 18 # 3308 985
821F 2-1/2″ X 18′ FIR PIKE POLE W/FINISH 18 # 3308 985
821G 2-1/2″ X 18′ FIR PIKE POLE W/ GUARD 18 #
821FG 2-1/2″ X 18′ FIR PIKE POLE W/FINISH AND GUARD 18 #
822 2-1/2″ X 20′ FIR PIKE POLE 20 # 3308 986
822F 2-1/2″ X 20′ FIR PIKE POLE W/FINISH 20 # 3308 986
PIKE POLE – PARTS 597 6′ PIKE POLE HANDLE (ASH) 5 # ASH HANDLES ARE       1-5/8″ WITH A KNOB ON THE END OPPOSITE THE PIKE
597BS 6′ PIKE POLE HANDLE (ASH) BORED & SHAVED 5 #
598 8′ PIKE POLE HANDLE (ASH) 6 #
598BS 8′ PIKE POLE HANDLE (ASH) BORED & SHAVED 6 #
599 10′ PIKE POLE HANDLE (ASH) 7 #
599BS 10′ PIKE POLE HANDLE (ASH) BORED & SHAVED 7 #
600 12′ PIKE POLE HANDLE (ASH) 10 #
600BS 12′ PIKE POLE HANDLE (ASH) BORED & SHAVED 10 #
601 14′ PIKE POLE HANDLE (ASH) 11 #
601BS 14′ PIKE POLE HANDLE (ASH) BORED & SHAVED 11 #
602 16′ PIKE POLE HANDLE (ASH) 12 #
602BS 16′ PIKE POLE HANDLE (ASH) BORED & SHAVED 12 #
3819A-8 8′ ALUM PIKE POLE HANDLE 4 # ALUMINUM HANDLES ARE 1-1/2 INCH OUTSIDE DIAMETER WITH A WOODEN KNOB ON THE END OPPOSITE THE PIKE
3819A-10 10′ ALUM PIKE POLE HANDLE 4 #
3819A-12 12′ ALUM PIKE POLE HANDLE 5 #
3819A-14 14′ ALUM PIKE POLE HANDLE 6 #
3819A-16 16′ ALUM PIKE POLE HANDLE 7 #
3819A-18 18′ ALUM PIKE POLE HANDLE 8 #
3819A-20 20′ ALUM PIKE POLE HANDLE 8 #
982 2-1/2″ X 12′ FIR PIKE POLE HANDLE 12 # 2-1/2″ FIR HANDLES ARE TAPERED FROM     2″ AT EACH END TO       2-1/2″ AT CENTER OF THE LENGTH
982F 2-1/2″ X 12′ FIR PIKE POLE HANDLE W/FINISH 12 #
983 2-1/2″ X 14′ FIR PIKE POLE HANDLE 13 #
983F 2-1/2″ X 14′ FIR PIKE POLE HANDLE W/FINISH 13 #
984T 2-1/2″ X 16′ FIR PIKE POLE HANDLE 14 #
984F 2-1/2″ X 16′ PIKE POLE HANDLE W/FINISH 14 #
985 2-1/2″ X 18″ FIR PIKE POLE HANDLE 17 #
985F 2-1/2″ X 18′ FIR PIKE POLE HANDLE W/FINISH 17 #
986 2-1/2″ X 20′ FIR PIKE POLE HANDLE 19 #
986F 2-1/2″ X 20′ FIR PIKE POLE HANDLE W/FINISH 19 #
#10 PIKE POLE GUARD (FITS 2″ OR 2-1/2″) 1 #
3308 TWISTED COLLAR PIKE 2 # ALL PIKES ARE TWISTED
3401-2 TWISTED COLLAR PIKE FERRULE 1 #
530 PIKE & HOOK – not currently available 1 #
3821 PIKE END – WOOD INSERT 1#
4152 PIKE HANDLE – WOOD END 1#
535L PIKE AND HOOK FERRULE 1 #
