REELS
#4533 Combination Pay-out and Take-up Reel. (For handling aluminum wire and cable) The coils and cartons of aluminum are larger than they are for copper. This reel is designed to take care of these large coils. Inside coil diameter may vary from 17″ minimum to 27″ maximum. Outside coil diameter is 37″ with height of 12″.

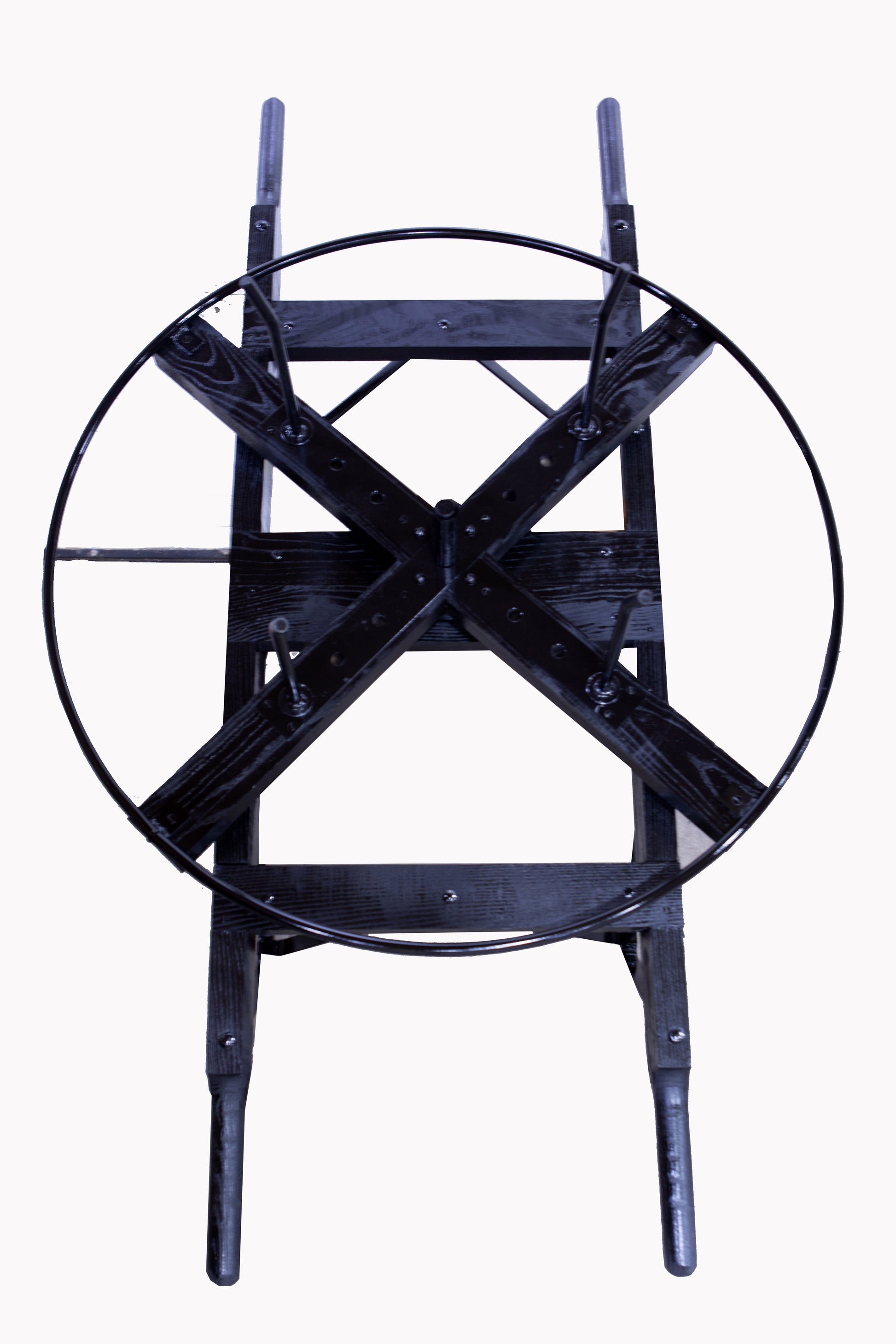

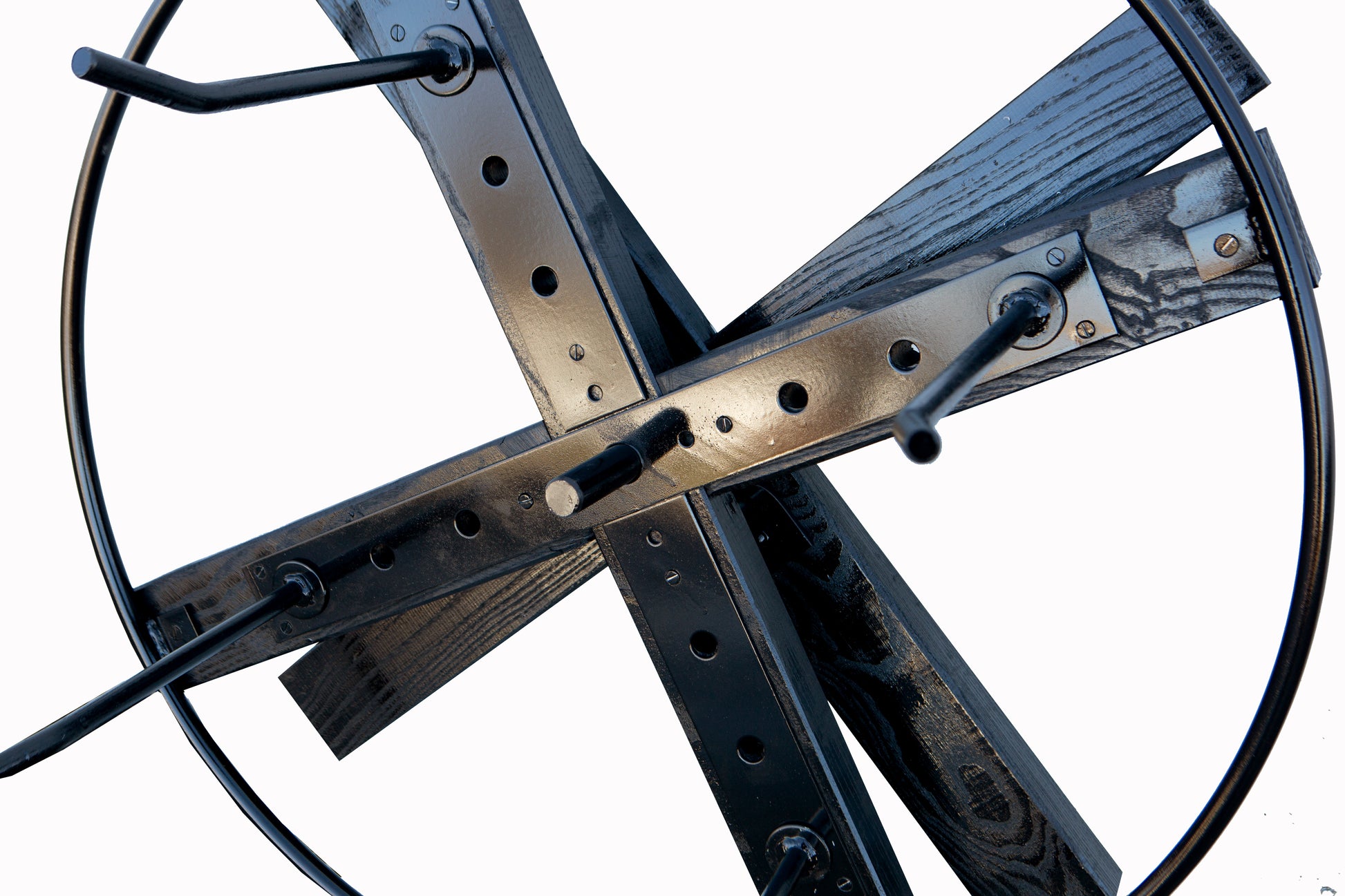

#900 – Heavy Type Barrow Reel– This reel was made for heavy wire and heavy work. It is made of hardwood, well braced and reinforced with steel. A wide bearing, together with a long pivot and sleeve allow the reel to turn easily no matter how heavy the coil of wire on the reel. The small amount of friction developed by this bearing does not prevent the reel from turning freely, and its purpose is to keep the reel from paying out the wire too fast and tangling it. It is a high quality reel. The reel pins adjust for 12, 18, and 24 inch coils.
#902 – Plain Pa Wood Barrow Type Reely-out Reel (not pictured) – This reel is a simple “+” design and is made of hardwood, well braced and reinforced with sheet steel throughout. It is especially suitable for gang mounting on a wagon, when paying out several wires at one time. Reel pins also adjust for 12, 18 or 24 inch coils.

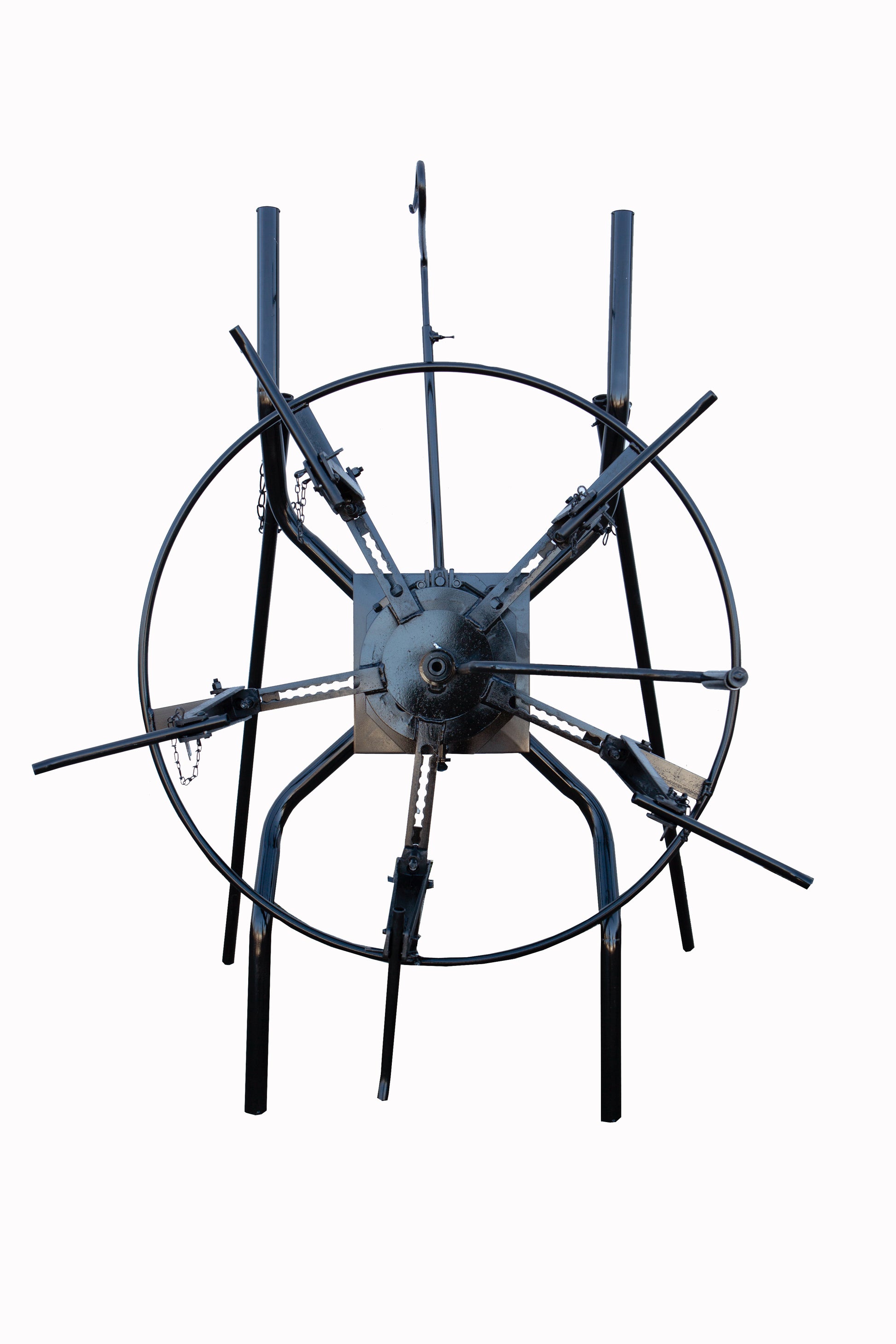

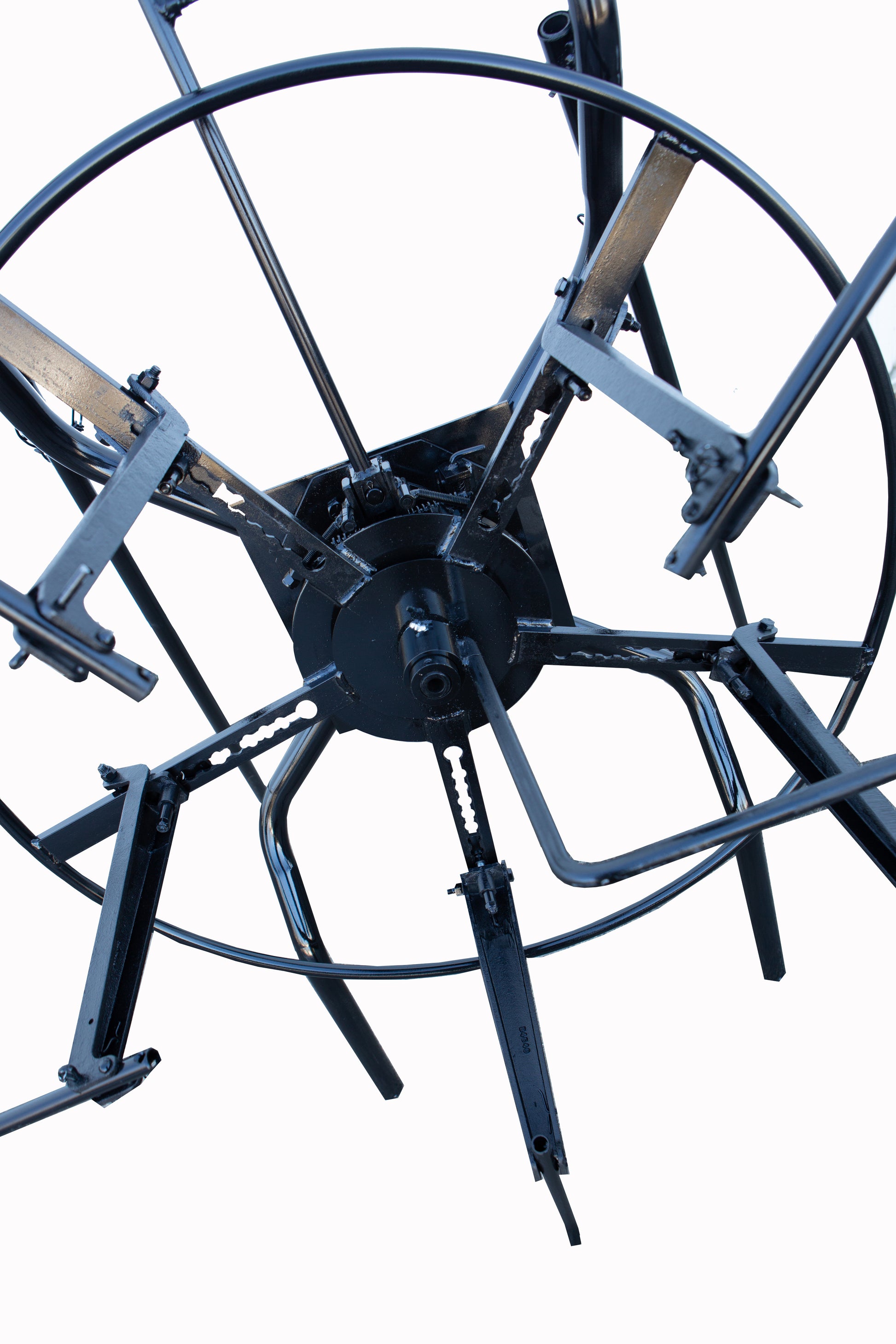

#3555 – Combination Pay-out Reel and Take-up Reel (For Copper Coils) – This reel is extremely light weight yet strong and durably constructed. The frame is made of stout tubing. To add to the ease of portability, the guide pins fold flat so that the reel is compact enough to carry or slide into a truck or convert it easily from a pay-out to a take-up reel.
Two braces and a hand crank are furnished to hold the reel in an upright position. The guide pins are easily and quickly adjustable to take wire coils from 14″ to 27″ inside diameter.
The automatic brake is another important feature. As the wire is pulled, the brake releases and the wire pays out freely. The instant tension is released the brake sets and any possibility of back-lash is prevented. One man can tend to several reels.
| TOOL REF # | TOOL DESCRIPTION | SUGG. LIST | WT | Ship Via | Hook/other | ||
| REELS & PARTS | 3555 | COMBINATION REEL ASSY | $1,775.84 | 80 # | LTL | WSL | |
| 3551-101 | CARRYING FRAME FOR 3555 or 4533 | $494.34 | 20 # | Federal Express | WSL | ||
| 3555A | COMBINATION REEL LESS CARRYING FRAME | $1,524.90 | 60 # | LTL | WSL | ||
| 4533 | COMBINATION REEL ASSY | $2,149.67 | 90 # | LTL | |||
| 4533A | REEL LESS CARRY FRAME | $1,825.93 | 70 # | LTL | |||
| 900 | HEAVY BARREL REEL ASSY | $962.30 | 80 # | LTL | |||
| 900-103 | WING ASSY FOR 900 PAYOUT REEL | $233.00 | 30 # | Federal Express | |||
| 902 | PAYOUT REEL ASSY (KIT) CONSISTS OF: 902-102 / 902-103 / 902-15 | $388.21 | 53 # | Federal Express | |||
| 902-102 | BASE FRAME FOR 902 PAYOUT REEL | $185.45 | 25 # | Federal Express | |||
| 902-103 | WING ASSY FOR 902 PAYOUT REEL | $220.42 | 25 # | Federal Express | |||
| 902-15R | GUARD PINS(SET OF 4) | $53.34 | 3 # | Federal Express |
